SD-MB-80

Tanım

Acicular sphero rolls are produced from high alloy spheroidal graphite cast iron material.

After casting, these rolls are treated through a long-time, low-temperature annealing process which is primarily applied for the purpose of relieving the internal stresses, as well as to ensure the complete transformation of possibly retained austenitic phase in the microstructure.

This microstructure named as acicular structure is obtained through formation of bainitic and needle structured martensitic carbides.

  • Cr, Ni, Mo alaşımlı küresel dökme demir
  • Bainit + Martensit + Karbür + Sferolit
  • Sertlik düşüşü
  • Çekme dayanımı: 500 – 700 N/mm2, Eğilme mukavemeti: 700 – 950 N/mm2
  • On finishing stands for small rounds
  • Aşınma direnci
  • Isıl çatlaklara duyarlı, soğutmaya dikkat

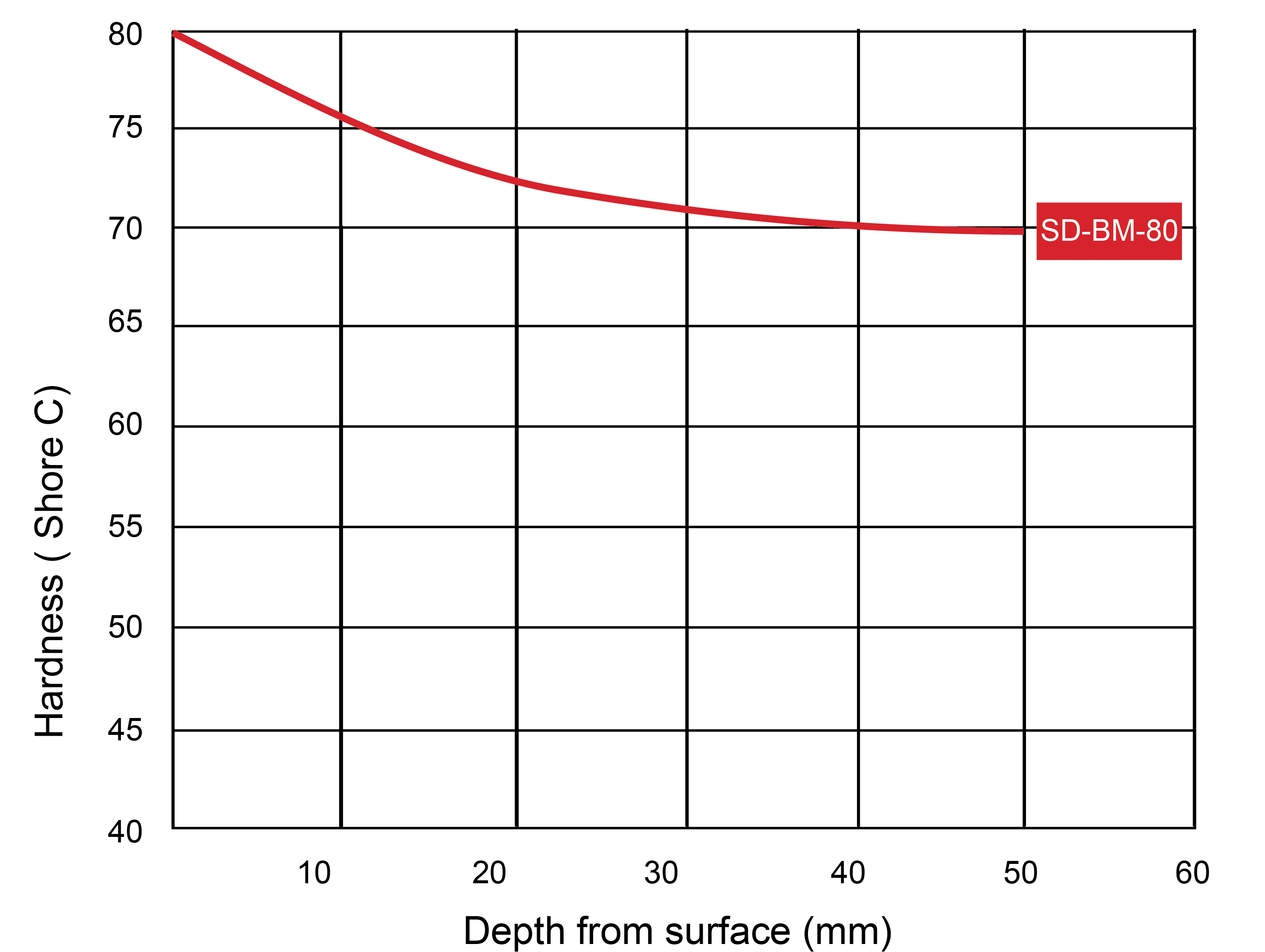

Sertlik Profili

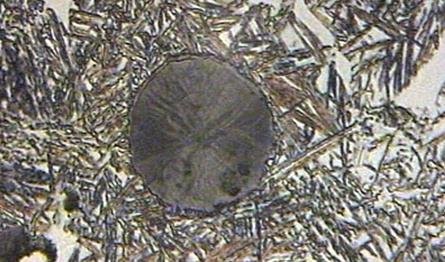

Mikroyapı
Kimyasal Analiz & Sertlik
SERTLİK
(SHORE C)
KİMYASAL ANALİZ
C% Si% Mn% Cr% Ni% Mo%
75-80 3.2 - 3.7 1.0 - 1.6 0.3 - 0.8 0.4 - 1.0 3.5 - 4.5 0.5 - 1.0

Mekanik Özellikleri

MEKANİK ÖZELLİKLERİ
Gerilim Mukavemeti
(N/mm2)
Bükülme Mukavemeti
(N/mm2)
Mikroyapısı
500-700 700-950 Beynitik + Martenzitik Matrikste
Marbür ve Mferolit
