CB-P-52
Description
Adamite rolls are produced from alloyed (Cr-Ni-Mo) steel of pearlitic microstructure.
Rolls are subjected to heat treatment after casting to provide the best microstructure and mechanical properties for rolling conditions.
- Cr, Ni, Mo alloyed, steel based
- Pearlite + Carbide
- Constant hardness curve
- Tensile strength: 400 – 600 N/mm2, Bending strength: 700 – 950 N/mm2
- On intermediate and finishing stands for sections, intermediate stand for rounds
- Resistance to loads
- Resistance to impact loads
- Resistance to thermal shocks

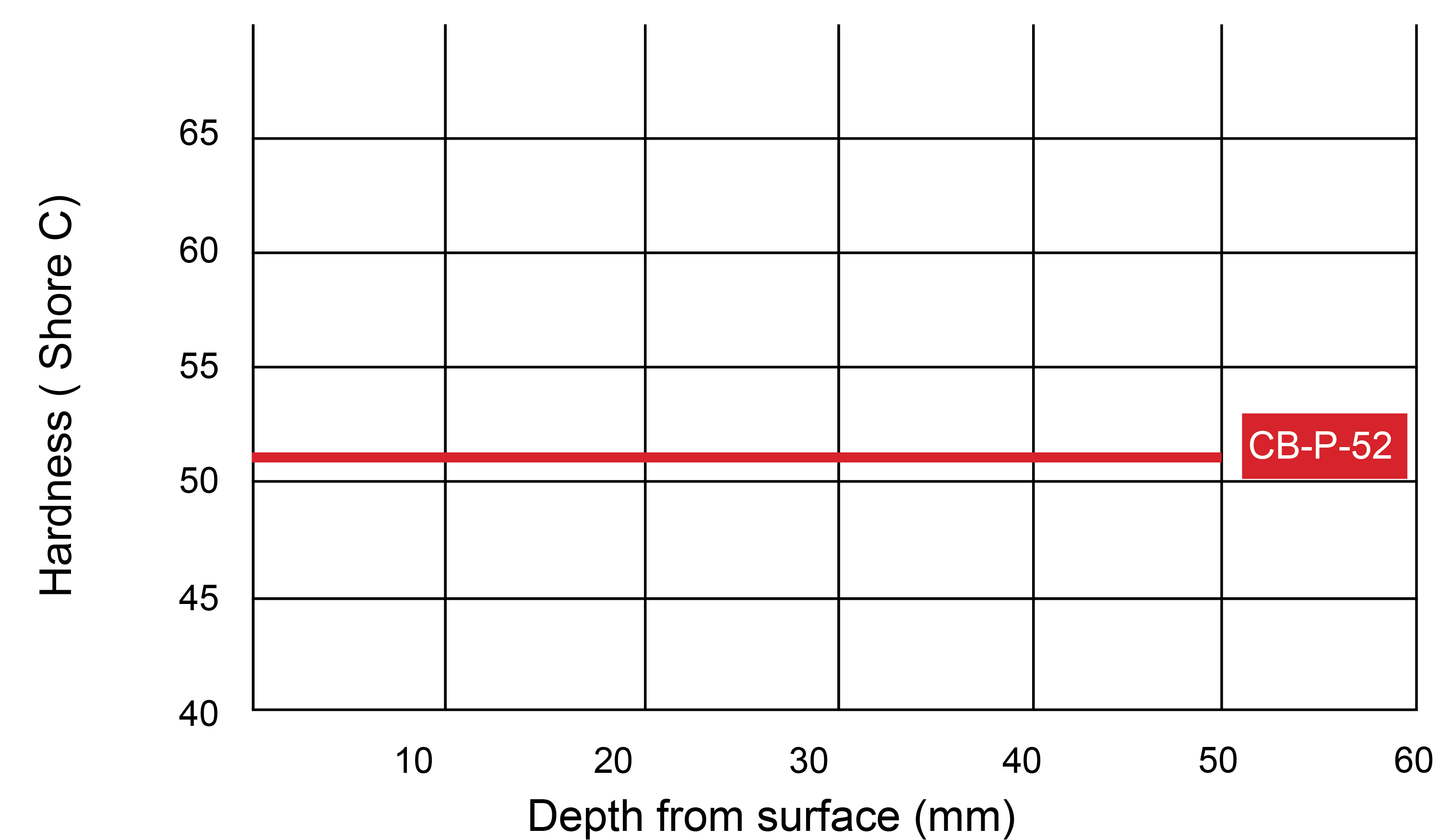

Hardness Profile
Microstructure
Chemical Analysis & Hardness
| HARDNESS (SHORE C) |
CHEMICAL ANALYSIS | |||||
| C% | Si% | Mn% | Cr% | Ni% | Mo% | |
| 48-53 | 1.7 - 2.2 | 0.2 - 0.7 | 0.6 - 1.2 | 0.5 - 1.5 | 0.2 - 1.5 | 0.2 - 0.8 |
Mechanical Properties
| MECHANICAL PROPERTIES | |||
| Tensile Strength (N/mm2) |
Bending Strength (N/mm2) |
Microstructure | |
| 400-600 | 700-950 | Pearlite + Carbide | |
